Search and value help for custom fields - tx. SM_CRM - Seach: Change documents

As I am still newbie the Solution manager seems to me still as miracle black box. There are nice techniques like e.g. dynamic mapping of searched database table fields and class methods within table CRMC_REPDY.

Version

My task was to make alive search of already made custom fields. The thing is the version of Solution manager heavily matters here. In my case it was Solman 7.1.

I found two precious tutorials to follow:

1. Basically all the stuff should work according to perfect manual of Peter Weigel.
   http://www.hybrid-eichhörnchen.de/business-transaction-search-enhancement/
2. Second valuable article is describing how to work with web UI written by Robyn Osby
   https://blogs.sap.com/2015/02/06/how-to-update-smcrm-search-criteria-to-report-based-on-the-value-of-a-custom-field/

The corner stone is appending of custom fields to structures CRMST_QUERY_SRV_REQ_BTIL and CRMST_QUERY_R_SRV_REQ_BTIL. It has made the search abilities alive. Then there is a need to play with web UI and create a new Custom configuration area.

Unfortunately value help within list-box on search page for custom field did not work at all. I have touched all the ATX_* tables like e.g. ATX_RUN_FIELDDEF according to Peter's manual. Still no gain. I have spend bunch of time by creating various custom search helps and their proper associations, by playing with data dictionary. Nothing led to the goal in this Solman version.

Custom value help

I had already working search with custom fields on search and result page, but still no possible value lists.

Finally I found bellow steps to make it work. I had fixed value list within domain of data dictionary.

• Open Changed document search page
• Locate the custom field - select it to have the focus on it
• Press key F2, you should see something like:

• Take here Application component name: AIC_CMCD_S
• Run tx. BSP_WD_CMPWB and use the component name click display
• Within the tree locate the proper View - see the picture.

The view leads you to a main implementation class CL_AIC_CMCD_SEARCHQUERYVI_IMPL. Now it becomes easy. Just enhance the class in a standard way with new methods for each custom field. The naming convention is what matters here to correctly trigger the method for field on the web page. So each value help method must start with prefix GET_V_ + field key name. In my case GET_V_ZZFLD00000K.

Content of the method could look like:

METHOD GET_V_ZZFLD00000K .

  DATA: lt_domain_entries TYPE STANDARD TABLE OF dd07v,
        lt_sel_table TYPE crmt_thtmlb_search_ddlb_nvp,
        ls_sel_table LIKE LINE OF lt_sel_table.

  FIELD-SYMBOLS : <fs_domain> TYPE dd07v.

  CALL FUNCTION 'DD_DOMVALUES_GET'
  EXPORTING
    domname        = 'CRM_BOOLEAN' " any dictionary domain...
    TEXT           = 'X'
    langu          = sy-langu
  TABLES
    dd07v_tab      = lt_domain_entries
  EXCEPTIONS
    wrong_textflag = 1
    OTHERS         = 2.

  IF sy-subrc <> 0.
    MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
    WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
  ELSE.

    LOOP AT lt_domain_entries ASSIGNING <fs_domain>.
      ls_sel_table-KEY = <fs_domain>-domvalue_l.
      ls_sel_table-VALUE = <fs_domain>-ddtext.
      APPEND ls_sel_table TO lt_sel_table.
      CLEAR ls_sel_table.
    ENDLOOP.

    cs_result-ddlb_options = lt_sel_table.
  ENDIF.

ENDMETHOD.



Have fun with Solman ;-)


Other sources:
https://stackoverflow.com/questions/37372466/changing-default-dropdown-value-in-sap-crm-web-ui
http://saptechnical.com/Tutorials/CRM/Dropdown/Index.htm

Update any table on remote system? YES! Remote updater via remote enabled function module

If you are looking for a way how to control database table synchronization process between two systems in a custom way, check out below solution aimed for transferring of transparent tables.

Of course we need two parts, some sender part and receiver part. The base is to do a XML transformation into binary Xstring which is suitable for transferring of any data, even whole table. I did lot of tests, it really nicely flexible.

The sender part

I am not providing the full source of  sender part. The corner stone of sender program would be the below XML transformation. Keep in mind to name source on both sides in the same way. Here is the source name "remote_data",it could be anything you want, but it has to be the same on both sides sender and receiver part of XML transformation (see the receiver FM as well).

It is possible to pack into Xstring whole tables, part of the tables based on certain conditions, anything that fits your needs.

Part of the sender code:

" Declaration snippet
    METHODS:
      encode_input
        IMPORTING it_data           TYPE ANY TABLE
        EXPORTING ev_xstring        TYPE xstring,


" Implementation
  METHOD encode_input.

    DATA: lo_writer TYPE REF TO cl_sxml_string_writer.

    lo_writer = cl_sxml_string_writer=>create( if_sxml=>co_xt_json ).

    TRY.
        CALL TRANSFORMATION id
        SOURCE remote_data = it_data
        RESULT XML lo_writer.
      CATCH cx_xslt_format_error.
        MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
    ENDTRY.

    ev_xstring = lo_writer->get_output( ).

  ENDMETHOD.                    "encode_input

The receiver part

Let me describe a bit the receiver part. It consists of remote enabled function module on remote system. There has to be established RFC connection between servers, ask your BC team. As input serves few parameters:



• Table name - in a character way
• Table content as a binary string
• Update type with below options

Possible update types:

1. I – insert only, it adds just new records
2. N – overwrite older records by newer ones based on standard date colums ERSDA or LAEDA. It skips update of tables where there is no LAEDA, ERSDA column present. This relays on DATE column only, other DATE/DATS columns are not considered.
3. F – force update overwrite all records

Furthermore there is an exporting parameter receiving a possible error code or success confirmation. By the sent error code you can act accordingly in your sender part.

The source code of receiver:

FUNCTION /yournamespace/customizing_update.
*"----------------------------------------------------------------------
*"*"Local Interface:
*"  IMPORTING
*"     VALUE(IV_TABNAME) TYPE  TABNAME
*"     VALUE(IV_UPDATE_TYPE) TYPE  C1
*"     VALUE(IV_XSTRING_TAB) TYPE  XSTRING
*"  EXPORTING
*"     VALUE(EV_STATUS) TYPE  CHAR4
*"----------------------------------------------------------------------

  IF ( iv_tabname IS INITIAL )
    OR
     ( iv_xstring_tab IS INITIAL ).
    ev_status = 'ERR0'.
    RETURN.
  ENDIF.


 "Note: Do here your own AUTHORITY-CHECK stuff!

  TYPES : BEGIN OF ty_where_clause,
            line TYPE char72,
          END OF ty_where_clause.

  DATA:
    lo_typedescr     TYPE REF TO cl_abap_typedescr,
    lo_struct        TYPE REF TO cl_abap_structdescr,
    lo_new_tab       TYPE REF TO cl_abap_tabledescr,
    lt_comp          TYPE cl_abap_structdescr=>component_table,
    lt_desc_fields   TYPE ddfields,
    lt_data_remote   TYPE REF TO data,
    ls_data_remote   TYPE REF TO data,
    ls_data_local    TYPE REF TO data,
    lv_count_ok      TYPE i,
    lv_count_err     TYPE i,
    lt_where_cond    LIKE STANDARD TABLE OF hrcond,
    ls_where_cond    LIKE LINE OF lt_where_cond,
    lt_where_clause  TYPE STANDARD TABLE OF ty_where_clause,
    lt_date_col      TYPE STANDARD TABLE OF cl_abap_structdescr=>component-name,
    lv_date_col      LIKE LINE OF lt_date_col,
    lv_date_col_comp LIKE LINE OF lt_date_col.

  FIELD-SYMBOLS:
    <ft_data_remote> TYPE ANY TABLE,
    <fs_data_remote> TYPE data,
    <fs_data_local>  TYPE data,
    <fv_value>       TYPE any,
    <fv_date_remote> TYPE dats,
    <fv_date_local>  TYPE dats,
    <fs_desc_fields> LIKE LINE OF lt_desc_fields,
    <fv_col>         LIKE LINE OF lt_comp,
    <fv_col_date>    LIKE LINE OF lt_date_col.


  " Fill known date columns to be checked in received data (it is used in update type "N" - newer records)
  lv_date_col = 'LAEDA'. " Date of last modification (in loop checked as the first one)
  APPEND lv_date_col TO lt_date_col.
  lv_date_col = 'ERSDA'. " Date of creation
  APPEND lv_date_col TO lt_date_col.


  " Create target itab type
  cl_abap_typedescr=>describe_by_name( " Note: cx_root does not catch type_not_found here
    EXPORTING  p_name         = iv_tabname
    RECEIVING  p_descr_ref    = lo_typedescr
    EXCEPTIONS type_not_found = 1
  ).
  IF sy-subrc NE 0.
    ev_status = 'ERR1'.
    "MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4. --> causes dump within RFC call
    WRITE 'Error, unknown target structure/table type in data dictionary: '.
    WRITE iv_tabname.
    RETURN.
  ENDIF.

  IF lo_typedescr IS NOT INITIAL.

    " Get structure components
    lo_struct ?= lo_typedescr.
    lt_comp = lo_struct->get_components( ).

    " Is date column of last modification/creation present?
    IF ( iv_update_type EQ 'N' ).
      LOOP AT lt_date_col ASSIGNING <fv_col_date>. " Loop over known date columns (suitable for comparison), items order does matter
        LOOP AT lt_comp ASSIGNING <fv_col>. " Loop over table components
          IF <fv_col_date> EQ <fv_col>-name.
            lv_date_col_comp = <fv_col_date>.
            EXIT.
          ENDIF.
        ENDLOOP.

        IF lv_date_col_comp IS NOT INITIAL.
          EXIT.
        ENDIF.
      ENDLOOP.
    ENDIF.

    " Create new target itab
    lo_new_tab = cl_abap_tabledescr=>create(
      p_line_type  = lo_struct
      p_table_kind = cl_abap_tabledescr=>tablekind_std
      p_unique     = abap_false
    ).

    IF lo_new_tab IS NOT INITIAL.
      CREATE DATA lt_data_remote TYPE HANDLE lo_new_tab.
    ELSE.
      ev_status = 'ERR2'.
      RETURN.
    ENDIF.
  ELSE.
    ev_status = 'ERR3'.
    RETURN.
  ENDIF.

  " Decode data into itab
  ASSIGN lt_data_remote->* TO <ft_data_remote>.

  TRY.
      CALL TRANSFORMATION id
      SOURCE XML iv_xstring_tab
      RESULT remote_data = <ft_data_remote>.
    CATCH cx_xslt_format_error.
      ev_status = 'ERR4'.
      "MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4. --> Note: causes dump on both sides, calling program and this target FM
      WRITE 'Error occured during itab (xstring) decoding for table: '.
      WRITE iv_tabname.
      RETURN.
  ENDTRY.

  " Loop over itab for DB update
  IF <ft_data_remote> IS ASSIGNED.

    CREATE DATA ls_data_remote LIKE LINE OF <ft_data_remote>.
    ASSIGN ls_data_remote->* TO <fs_data_remote>.

    CREATE DATA ls_data_local LIKE LINE OF <ft_data_remote>.
    ASSIGN ls_data_local->* TO <fs_data_local>.

    " Get key fields of the table (keyflag value)
    lt_desc_fields = lo_struct->get_ddic_field_list( ).

    " Update table according to given type
    LOOP AT <ft_data_remote> ASSIGNING <fs_data_remote>.

      IF ( iv_update_type EQ 'I' )  " Increment only
         OR
         ( iv_update_type EQ 'N' ). " Update only older

        "*******************************************************************************
        "  Do partial update
        "
        "  I - Increment only = add missing records only
        "    or
        "  N - Update only older recocords by newer ones based on LAEDA, ERSDA columns
        "*******************************************************************************

        " Prepare SQL WHERE condition
        LOOP AT lt_desc_fields ASSIGNING <fs_desc_fields> WHERE keyflag = abap_true. " get primary key fields

          " Get value of key component
          ASSIGN COMPONENT  <fs_desc_fields>-fieldname OF STRUCTURE <fs_data_remote> TO <fv_value>.

          " Prepare condition table
          ls_where_cond-field = <fs_desc_fields>-fieldname.
          ls_where_cond-opera = 'EQ'.
          ls_where_cond-low   = <fv_value>.
          APPEND ls_where_cond TO lt_where_cond.

          UNASSIGN <fv_value>.
          CLEAR ls_where_cond.

        ENDLOOP.

        IF lt_where_cond IS NOT INITIAL.

          " Convert condition table into SQL WHERE clause
          CALL FUNCTION 'RH_DYNAMIC_WHERE_BUILD'
            EXPORTING
              dbtable         = iv_tabname
            TABLES
              condtab         = lt_where_cond
              where_clause    = lt_where_clause
            EXCEPTIONS
              empty_condtab   = 1
              no_db_field     = 2
              unknown_db      = 3
              wrong_condition = 4
              OTHERS          = 5.
          IF sy-subrc <> 0.
            ev_status = 'ERR7'.
            WRITE 'Some error occured during building SQL WHERE condition for table: '.
            WRITE iv_tabname.
          ENDIF.

          SELECT SINGLE *
            FROM  (iv_tabname)
            INTO  <fs_data_local>
            WHERE (lt_where_clause).

          IF sy-subrc EQ 0.

            " Update only older recocords by newer ones based on LAEDA, ERSDA columns
            IF ( iv_update_type EQ 'N' ).
              IF <fs_data_local> IS ASSIGNED. " Then compare date, if it is present
                IF lv_date_col_comp IS NOT INITIAL.
                  " Compare remote and local dates

                  " Get values of date component
                  ASSIGN COMPONENT lv_date_col_comp OF STRUCTURE <fs_data_local>  TO <fv_date_local>.
                  ASSIGN COMPONENT lv_date_col_comp OF STRUCTURE <fs_data_remote> TO <fv_date_remote>.

                  IF <fv_date_local> < <fv_date_remote>.

                    "*******************************************************************************
                    " Overwrite record with newer one
                    "*******************************************************************************
                    UPDATE (iv_tabname) FROM <fs_data_remote>.
                    IF sy-subrc EQ 0.
                      lv_count_ok = lv_count_ok + 1.
                      COMMIT WORK.
                    ELSE.
                      lv_count_err = lv_count_err + 1.
                      ROLLBACK WORK.
                    ENDIF.

                  ENDIF.

                  UNASSIGN <fv_date_local>.
                  UNASSIGN <fv_date_remote>.

                ENDIF.
              ENDIF.
            ENDIF.

          ELSE.

            "*******************************************************************************
            " Record does not exist = add it (It fits to both types of update I + N)
            "*******************************************************************************
            INSERT (iv_tabname) FROM <fs_data_remote>.
            IF sy-subrc EQ 0.
              lv_count_ok = lv_count_ok + 1.
              COMMIT WORK.
            ELSE.
              lv_count_err = lv_count_err + 1.
              ROLLBACK WORK.
            ENDIF.

          ENDIF.

          CLEAR lt_where_cond.
          CLEAR lt_where_clause.

        ENDIF.

      ELSEIF iv_update_type EQ 'F'.

        "*******************************************************************************
        "  Do force update = overwrite all already existing records
        "  Inserts + Updates
        "*******************************************************************************
        MODIFY (iv_tabname) FROM <fs_data_remote>.
        IF sy-subrc EQ 0.
          lv_count_ok = lv_count_ok + 1.
          COMMIT WORK.
        ELSE.
          lv_count_err = lv_count_err + 1.
          ROLLBACK WORK.
        ENDIF.

      ENDIF.

    ENDLOOP.

    IF lv_count_err EQ 0.
      ev_status = 'OK'.
    ELSE.
      ev_status = 'ERR6'.
      WRITE 'Some error occured during update of table: '.
      WRITE iv_tabname.
      WRITE ', Number of failed records: '.
      WRITE lv_count_err.
      WRITE ', Number of well passed records: '.
      WRITE lv_count_ok.
      RETURN.
    ENDIF.

  ELSE.
    ev_status = 'ERR5'.
    WRITE 'No data for table: '.
    WRITE iv_tabname.
    RETURN.
  ENDIF.

ENDFUNCTION.

The sources

https://stackoverflow.com/questions/30597747/cant-catch-certain-exceptions

http://zevolving.com/2008/09/dynamic-internal-table-creation/

https://blogs.sap.com/2013/04/16/writing-dynamic-where-clause-in-abap-select-query/

Reading plant from Organization levels based on Role name

Bellow code snippet can become handy and save time if you are looking for a way how to get plant/werks assigned to a specific role. By similar code you can read of course other stuff like Shipping point ($VSTEL),  Sales  distribution channel ($VTWEG), Sales organization ($VKORG) etc. The base used FM 'PRGN_1252_READ_ORG_LEVELS' is taken out of transaction PFCG.

DATA:
   lt_level      TYPE STANDARD TABLE OF pt1252,
   lt_plant      TYPE STANDARD TABLE OF werks,  " Final plant itab
   lv_plant_low  TYPE werks,
   lv_plant_high TYPE werks.

FIELD-SYMBOLS:
   <fs_level> LIKE LINE OF lt_level,
   <fs_plant> LIKE LINE OF lt_plant.

CALL FUNCTION 'PRGN_1252_READ_ORG_LEVELS'
  EXPORTING
    activity_group    = '/Your_Name_Space/Role_name'
  TABLES
    org_levels        = lt_level
  EXCEPTIONS
    no_data_available = 1.

LOOP AT lt_level ASSIGNING <fs_level> WHERE varbl EQ '$WERKS'.

  IF ( <fs_level>-low IS NOT INITIAL ) AND ( <fs_level>-high IS INITIAL ).
    APPEND <fs_level>-low TO lt_plant.

  ELSEIF ( <fs_level>-low IS NOT INITIAL ) AND ( <fs_level>-high IS NOT INITIAL ).
    IF <fs_level>-low < <fs_level>-high.

      lv_plant_low  = <fs_level>-low.
      lv_plant_high = <fs_level>-high.

      WHILE lv_plant_low <= lv_plant_high.
        APPEND lv_plant_low TO lt_plant.
        lv_plant_low = lv_plant_low + 1.
      ENDWHILE.

    ELSE.
      APPEND <fs_level>-low TO lt_plant.
    ENDIF.
  ENDIF.
ENDLOOP.

Update all dynpro/screen fields in one shot

Lazyness is one of the engines for iprovements. So this is the root cause of this short article.

Once you are trying to update a classic Dynpro you should call FM DYNP_VALUES_UPDATE. Ok, you can collect ITAB for each screen field providing name and value as on bellow example.

      ls_dynpfield-fieldname  = lv_screen_field_name.
      ls_dynpfield-fieldvalue = lv_screen_field_val.
      APPEND ls_dynpfield TO lt_dynpfield.

It is still annoying to do so for each screen field...

Imagine, you can set the screen values as you need and run just once some certain method doing the whole screen update job. Here it is, there is just one simple call. You can reuse it as many times you want. The only condition is to have screen connected to a certain structure variable. That's all.

Screen update method call

    " Update screen
     lo_ctrl_screen->update_screen_fields(
      iv_prog       = sy-cprog                                                      " Program name
      iv_screen     = '0200'                       " Dynpro number
      iv_struc_name = 'GS_SCREEN_STRUCTURE_NAME' " Name of structure holding the screen values
      is_struc_data = gs_real_structure                            " Structure variable itself
    ).

The method source code:

  METHOD update_screen_fields.

    DATA:
      lt_dynpfield         TYPE STANDARD TABLE OF dynpread,
      ls_dynpfield         LIKE LINE OF lt_dynpfield,
      lo_struc_descr       TYPE REF TO cl_abap_structdescr.

    lo_struc_descr ?= cl_abap_structdescr=>describe_by_data( is_struc_data ).
    CHECK sy-subrc = 0.

    FIELD-SYMBOLS:
      <fs_comp> LIKE LINE OF lo_struc_descr->components,
      <fs_val>  TYPE any.

    LOOP AT lo_struc_descr->components ASSIGNING <fs_comp>.
      ASSIGN COMPONENT <fs_comp>-name OF STRUCTURE is_struc_data TO <fs_val>.

      IF <fs_val> IS NOT INITIAL.
        CLEAR ls_dynpfield.
        CONCATENATE iv_struc_name <fs_comp>-name INTO ls_dynpfield-fieldname.
        ls_dynpfield-fieldvalue = <fs_val>.
        APPEND ls_dynpfield TO lt_dynpfield.
      ENDIF.

    ENDLOOP.

    " Update screen
    IF lt_dynpfield IS NOT INITIAL.
      CALL FUNCTION 'DYNP_VALUES_UPDATE'
        EXPORTING
          dyname     = iv_prog    "Program name
          dynumb     = iv_screen  "Screen number
        TABLES
          dynpfields = lt_dynpfield
        EXCEPTIONS
          OTHERS     = 0.
    ENDIF.

  ENDMETHOD.                    "update_screen_fields

How to refresh graph (based on CL_GUI_CHART_ENGINE / GRAPHICS_GUI_CE_DEMO)

Many of us used the sample simple nice program GRAPHICS_GUI_CE_DEMO as a pattern how to work with graphs. Unfortunately this program does not solve the question how to update/refresh  graph data, furthermore you can find misleading info on some forums.  I do not say the bellow pattern is the best, but it is working fine :)

In my case I have dedicated modal window for graph. Each time I press ALV toolbar button I want to see related graph to the grid. I have always prepared an internal table with correct graph data (see below t_graph within the coding).

Screen call e.g.

    CALL SCREEN 500 STARTING AT 13 6 ENDING AT 175 37.

PBO

MODULE status_0500 OUTPUT.

  SET PF-STATUS 'DEFAULT_STATUS'.
  SET TITLEBAR 'GRAPH'.

  lcl_main=>self->generate_graph( ).

ENDMODULE.

PAI

MODULE exit_command_0500 INPUT.

  LEAVE TO SCREEN 0. " Back to main screen

ENDMODULE.

The PBO method

I am keeping just two global variables outside the method itself. There is no need to call any screen container destructor to reuse the graph object again etc. The base screen under the modal window can take care for calling destructors first and freeing the variables..

The globals

DATA:
  go_ce_container   TYPE REF TO cl_gui_container.
  go_ce_viewer      TYPE REF TO cl_gui_chart_engine.

The generator method coding

The whole question is what should be setup each screen call (local variables) and what should remain in memory (global ones). The local class  lo_graph is just my rewrite of two performs/subroutines  from the demo program GRAPHICS_GUI_CE_DEMO. It's methods are responsible for filling the XML data.

  METHOD generate_graph.

    DATA:
      lo_graph           TYPE REF TO lcl_graph, " custom class preparing XML data for graph
      lo_ixml_data_doc   TYPE REF TO if_ixml_document,
      lo_ixml_custom_doc TYPE REF TO if_ixml_document,
      lo_ixml            TYPE REF TO if_ixml,
      lo_ixml_sf         TYPE REF TO if_ixml_stream_factory,
      lo_ostream         TYPE REF TO if_ixml_ostream,
      lv_xstr            TYPE xstring.

    IF go_ce_container IS INITIAL.

       go_ce_container = generate_graph_container( ).

      CREATE OBJECT go_ce_viewer
        EXPORTING
          parent = go_ce_container.

    ENDIF.

    lo_ixml = cl_ixml=>create( ).
    lo_ixml_sf = lo_ixml->create_stream_factory( ).

    CREATE OBJECT lo_graph.

    lo_graph->create_data(
      EXPORTING
        it_graph    = t_graph
        iv_ixml     = lo_ixml
      CHANGING
        cv_ixml_doc = lo_ixml_data_doc
    ).
    lo_ostream = lo_ixml_sf->create_ostream_xstring( lv_xstr ).
    lo_ixml_data_doc->render( ostream = lo_ostream ).
    go_ce_viewer->set_data( xdata = lv_xstr ).

    CLEAR lv_xstr.

    lo_graph->create_custom(
      EXPORTING
        iv_title    = v_grid_title
        iv_ixml     = lo_ixml
      CHANGING
        cv_ixml_doc = lo_ixml_custom_doc
    ).
    lo_ostream = lo_ixml_sf->create_ostream_xstring( lv_xstr ).
    lo_ixml_custom_doc->render( ostream = lo_ostream ).
    go_ce_viewer->set_customizing( xdata = lv_xstr ).

    go_ce_viewer->render( ).

  ENDMETHOD.                    "generate_graph

Explore program source code including called repository classes

Intro

Some years ago I wrote a tiny program exploring program source code covering also all includes. Now I did a rewrite, it is a bit OOP and it offers ability to explore also repository classes used within the report.

What it offers is obvious from input selection screen

Possible options

• Investigate transaction or program directly
• From transaction it takes program name and continues as with ordinary program.
• Within program it consider the following:
• main report
• all includes - used also for local classes
• all repository classes defined as:
• REF TO something  - it is further checked for class existance
• something=>method( ) - it considers static calls as well
• Furthermore there is an option to check just custom namespace classes + Y/Z ones. It means classes under the same namespace as main report. Otherwise it reads all the classes including SAP ones as e.g. SALV classes etc.
• It does the same for repository class as an input.
• You can provide free text as an input or regular expression to be checked against line of coding.

Some examples

Possible output for "select" as a free text. You can check the below picture, the pattern exists within main program and used class as well.

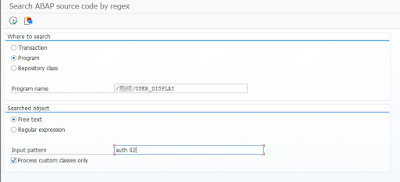

Free text input "auth 02"

The result

Regex - all static class calls

The result

Regex - all number from 2 up to 8 digits

The result

Source

• http://www.sapnet.ru/viewtopic.php?p=7706  - this article helped a lot, thanks to the author!
• https://help.sap.com/doc/abapdocu_752_index_htm/7.52/en-US/abenregex_syntax_specials.htm - good regular expression intro

Source code

*&---------------------------------------------------------------------*
*& Report /namespace/REPORT_REGEX_SEARCH
*-----------------------------------------------------------------------
* Purpose:  Search ABAP source code by regex
*-----------------------------------------------------------------------
REPORT /namespace/report_regex_search MESSAGE-ID 00.

INCLUDE /namespace/report_regex_search_c01.


*******************************************************************
*   SCREENS - choose transaction or program
*******************************************************************
SELECTION-SCREEN BEGIN OF BLOCK frame1 WITH FRAME TITLE TEXT-001.
" Transaction
SELECTION-SCREEN BEGIN OF LINE.
PARAMETERS: r_trans  RADIOBUTTON GROUP grp1 USER-COMMAND flagcommand1.
SELECTION-SCREEN COMMENT 3(60) TEXT-002. " Transaction
SELECTION-SCREEN END OF LINE.

" Program
SELECTION-SCREEN BEGIN OF LINE.
PARAMETERS: r_prog  RADIOBUTTON GROUP grp1 DEFAULT 'X'.
SELECTION-SCREEN COMMENT 3(60) TEXT-003. " Program
SELECTION-SCREEN END OF LINE.

" Class
SELECTION-SCREEN BEGIN OF LINE.
PARAMETERS: r_class  RADIOBUTTON GROUP grp1.
SELECTION-SCREEN COMMENT 3(60) TEXT-005. " Class
SELECTION-SCREEN END OF LINE.

SELECTION-SCREEN SKIP.

PARAMETERS: p_tcode TYPE tstc-tcode,                                     " Transaction Code
            p_prog  TYPE trdir-name MATCHCODE OBJECT progname,           " Program name
            p_class TYPE seoclass-clsname MATCHCODE OBJECT seoclsnamef4. " Class name

SELECTION-SCREEN END OF BLOCK frame1.

SELECTION-SCREEN BEGIN OF BLOCK frame2 WITH FRAME TITLE TEXT-004.

" Free text
SELECTION-SCREEN BEGIN OF LINE.
PARAMETERS: r_text  RADIOBUTTON GROUP grp2 USER-COMMAND flagcommand2 DEFAULT 'X'.
SELECTION-SCREEN COMMENT 3(60) TEXT-006. " Free text switch
SELECTION-SCREEN END OF LINE.

" Regular expresson
SELECTION-SCREEN BEGIN OF LINE.
PARAMETERS: r_regul RADIOBUTTON GROUP grp2.
SELECTION-SCREEN COMMENT 3(60) TEXT-007. " Regular expression switch
SELECTION-SCREEN END OF LINE.

SELECTION-SCREEN SKIP.

" Inputs as e.g.:
*    '^.+(\d{4}).+$'. " all four digits values in coding
*    `^[^\*].+(')(\d{4})(').+$`. " all uncommented lines
*    `^[\*].+(')(\d{4})(').+$`. " all commented lines starting with *
*    `^.+(\BTRY\B).+$`. " get TRY statement lines, here case insensitive
PARAMETERS p_patern  TYPE c LENGTH 100 LOWER CASE. " Pattern to be found
PARAMETERS p_own_cl  AS CHECKBOX DEFAULT 'X'. " Process only own namespace classes + Y/Z ones

SELECTION-SCREEN END OF BLOCK frame2.


*******************************************************************
AT SELECTION-SCREEN OUTPUT . " PBO action (hide/show)
*******************************************************************
  LOOP AT SCREEN. " Hiding

    IF ( r_prog NE 'X' ) AND ( screen-name CS 'p_prog' ).
      screen-active = 0.
      MODIFY SCREEN.
      CONTINUE.
    ENDIF.

    IF ( r_trans NE 'X' ) AND ( screen-name CS 'p_tcode' ).
      screen-active = 0.
      MODIFY SCREEN.
      CONTINUE.
    ENDIF.

    IF ( r_class NE 'X' ) AND ( screen-name CS 'p_class' ).
      screen-active = 0.
      MODIFY SCREEN.
      CONTINUE.
    ENDIF.

    IF ( r_trans NE 'X' ) AND ( r_prog NE 'X' ) AND  ( screen-name CS 'p_own_cl' ).
      screen-active = 0.
      MODIFY SCREEN.
      CONTINUE.
    ENDIF.

  ENDLOOP.


*******************************************************************
AT SELECTION-SCREEN. " PAI check
*******************************************************************

* Get program name out of transaction
  IF sy-ucomm EQ 'ONLI'. " Check done only after pressing of submit button
    IF r_trans EQ 'X'.
      " Check transaction existance
      CONDENSE p_tcode NO-GAPS.
      CLEAR p_prog.
      SELECT SINGLE pgmna
      FROM tstc
      INTO p_prog
      WHERE tcode = p_tcode.
      IF sy-subrc NE 0.
        MESSAGE e001 WITH 'Transaction does not exist : ' p_tcode.
      ENDIF.
    ELSEIF r_prog EQ 'X'.
      " Check program existance
      SELECT SINGLE name
      FROM trdir
      INTO p_prog
      WHERE name = p_prog.
      IF sy-subrc NE 0.
        MESSAGE e001 WITH 'Program does not exist : ' p_prog.
      ENDIF.
    ELSEIF r_class EQ 'X'.
      CONDENSE p_class NO-GAPS.
      IF p_class IS INITIAL.
        MESSAGE e001 WITH 'There is no repository class to be processed.'.
      ENDIF.
      " Check class existance
      SELECT SINGLE clsname
      FROM seoclass
      INTO p_class
      WHERE clsname = p_class.
      IF sy-subrc NE 0.
        MESSAGE e001 WITH 'Repository class does not exist : ' p_class.
      ENDIF.
    ENDIF.
  ENDIF.


*******************************************************************
START-OF-SELECTION.
*******************************************************************

  DATA: gv_code_src  TYPE c LENGTH 1. " P - program, C - class

  IF ( r_trans EQ abap_true ) OR ( r_prog EQ abap_true ).
    gv_code_src = 'P'. " = Program
  ELSE.
    gv_code_src = 'C'. " = Class
*  else 'F' = function module - possibly in future etc.
  ENDIF.

  lcl_main_regex=>self->run(
    iv_code_src   = gv_code_src " P - program, C - class
    iv_regex_src  = r_regul     " String or Regular expression
    iv_pattern    = p_patern    " Searched pattern
    iv_prog       = p_prog      " Program name
    iv_class      = p_class     " Repository class name
    iv_own_cl     = p_own_cl    " Explore/process only classes from custom namespace (takem from program name) or Z/Y classes
  ).




*&---------------------------------------------------------------------*
*&  Include           /namespace/REPORT_REGEX_SEARCH_C01
*&---------------------------------------------------------------------*

CLASS lcl_main_regex DEFINITION CREATE PRIVATE FINAL.

  PUBLIC SECTION.

    CLASS-DATA
      self TYPE REF TO lcl_main_regex.

    CLASS-METHODS
      class_constructor.

    METHODS
      run
        IMPORTING
          iv_code_src  TYPE char1
          iv_regex_src TYPE abap_bool
          iv_pattern   TYPE clike
          iv_prog      TYPE progname
          iv_class     TYPE seoclsname
          iv_own_cl    TYPE flag.

  PRIVATE SECTION.

    TYPES:
      BEGIN OF ts_include,
        prgname TYPE progname,
      END OF ts_include,
      BEGIN OF ts_code_line,
        src_type TYPE string,
        src_name TYPE string,
        line_num TYPE i,
        src_code TYPE string,
      END OF ts_code_line,
      tt_include       TYPE STANDARD TABLE OF ts_include,
      tt_code_textpool TYPE TABLE OF textpool,
      tt_code_str      TYPE STANDARD TABLE OF string. " Note: edpline (char72) is short for some cases


    CONSTANTS:
      " Get possible class from data declaration
      cv_class_ref        TYPE string VALUE '^.{0,}\s+[Rr][Ee][Ff][[:space:]]{1,}[Tt][Oo]\s+(\S*[^,\.\s]).+$',
      " Get class out of static method call
      cv_class_static     TYPE string VALUE '^.{0,}(\S*)(=>).+$',
      " Get class/program prefix - custom namespace
      cv_namespace_prefix TYPE string VALUE '^.{0,}[/](\S*)[/].+$'.

    DATA:
      v_total_line_num   TYPE i,
      v_found_flag       TYPE abap_bool,
      t_regex_class      TYPE STANDARD TABLE OF string,
      t_clsname          TYPE STANDARD TABLE OF string,
      t_target_code_line TYPE STANDARD TABLE OF ts_code_line,
      o_ref              TYPE REF TO cx_root.

    METHODS:
      convert_code_edpline
        IMPORTING it_code TYPE seop_source
        EXPORTING et_code TYPE tt_code_str,
      convert_code_textpool
        IMPORTING it_code TYPE tt_code_textpool
        EXPORTING et_code TYPE tt_code_str,
      create_regex
        IMPORTING iv_pattern      TYPE clike
        RETURNING VALUE(rv_regex) TYPE string,
      check_class_exist
        IMPORTING iv_class        TYPE string
                  iv_own_cl       TYPE flag
                  iv_prog         TYPE progname
        RETURNING VALUE(rv_exist) TYPE abap_bool,
      process_class_includes
        IMPORTING
          iv_class TYPE string
          iv_regex TYPE clike,
      get_process_class_source
        IMPORTING
          iv_regex   TYPE clike
          iv_class   TYPE seoclskey
          iv_inctype TYPE  c,
      get_program_includes
        IMPORTING iv_prog    TYPE prgname
        EXPORTING et_include TYPE tt_include,
      process_program
        IMPORTING
          iv_prog   TYPE progname
          iv_regex  TYPE string
          iv_own_cl TYPE flag,
      process_class
        IMPORTING
          iv_class TYPE seoclsname
          iv_regex TYPE string,
      process_program_includes
        IMPORTING
          iv_prog    TYPE progname
          iv_regex   TYPE clike
          it_include TYPE tt_include,
      process_lines
        IMPORTING
          iv_regex           TYPE clike
          iv_src_type        TYPE clike
          iv_src_name        TYPE clike
          it_src_code        TYPE tt_code_str
          iv_colect_subclass TYPE abap_bool,
      process_final_alv,
      regex_classname
        IMPORTING
          iv_code_line TYPE string,
      regex_target_string
        IMPORTING
          iv_regex     TYPE clike
          iv_src_type  TYPE clike
          iv_src_name  TYPE clike
          iv_line_num  TYPE i
          iv_code_line TYPE string.

ENDCLASS.                    "lcl_main_regex DEFINITION

CLASS lcl_main_regex IMPLEMENTATION.

  METHOD class_constructor.

    CREATE OBJECT self.

    APPEND cv_class_ref TO self->t_regex_class.
    APPEND cv_class_static TO self->t_regex_class.

  ENDMETHOD.                    "class_constructor

  METHOD run.

    DATA lv_regex TYPE string.

    IF iv_regex_src EQ abap_true.
      lv_regex = iv_pattern. " Regular expression
    ELSE.
      lv_regex = create_regex( iv_pattern = iv_pattern ). " Free string
    ENDIF.

    IF iv_code_src = 'P'. " = Program
      process_program(
        iv_prog   = iv_prog
        iv_regex  = lv_regex
        iv_own_cl = iv_own_cl
      ).
    ELSEIF iv_code_src = 'C'. " = Class
      process_class(
        iv_class = iv_class
        iv_regex = lv_regex
      ).
    ENDIF.

  ENDMETHOD.                    "run

  METHOD convert_code_edpline.

    DATA lv_code TYPE string.

    CLEAR et_code[].

    FIELD-SYMBOLS <f_code> LIKE LINE OF it_code.

    LOOP AT it_code ASSIGNING <f_code>.
      CLEAR lv_code.
      lv_code = <f_code>. " edpline to string
      APPEND lv_code TO et_code.
    ENDLOOP.

  ENDMETHOD.

  METHOD convert_code_textpool.

    DATA lv_code TYPE string.

    CLEAR et_code[].

    FIELD-SYMBOLS <f_code> LIKE LINE OF it_code.

    LOOP AT it_code ASSIGNING <f_code>.
      CLEAR lv_code.
      lv_code = <f_code>-entry.
      APPEND lv_code TO et_code.
    ENDLOOP.

  ENDMETHOD.

  METHOD create_regex.

    DATA:
      lt_line    TYPE STANDARD TABLE OF string,
      lv_pattern TYPE string.

    lv_pattern = iv_pattern.
    CONDENSE lv_pattern.
    SPLIT lv_pattern AT space INTO TABLE lt_line.

    rv_regex = '^'.

    FIELD-SYMBOLS: <f_line> LIKE LINE OF lt_line.
    LOOP AT lt_line ASSIGNING <f_line>.

      " Escape stars: e.g for searchings like: "SELECT *"
      IF <f_line> EQ '*'.
        <f_line> = '\*'.
      ENDIF.

      CONCATENATE rv_regex '.{0,}(' <f_line> '){1,}' INTO rv_regex.
    ENDLOOP.

    CONCATENATE rv_regex '.{0,}$' INTO rv_regex.

  ENDMETHOD.

  METHOD check_class_exist.

    DATA:
      lv_class      TYPE seoclsname,
      lv_prefix_cl  TYPE string,
      lv_prefix_prg TYPE string.

    rv_exist = abap_false.
    lv_class = iv_class.
    TRANSLATE lv_class TO UPPER CASE.

    " Check class custom/own namespace
    IF iv_own_cl EQ abap_true.

      CLEAR lv_prefix_cl.
      FIND REGEX cv_namespace_prefix
      IN iv_class IGNORING CASE
      SUBMATCHES lv_prefix_cl.
      CONDENSE lv_prefix_cl.

      CLEAR lv_prefix_prg.
      FIND REGEX cv_namespace_prefix
      IN iv_prog IGNORING CASE
      SUBMATCHES lv_prefix_prg.
      CONDENSE lv_prefix_prg.

      TRANSLATE lv_prefix_prg  TO UPPER CASE.
      TRANSLATE lv_prefix_cl   TO UPPER CASE.

      IF ( lv_prefix_prg IS NOT INITIAL ) AND ( lv_prefix_cl IS NOT INITIAL )
         AND ( lv_prefix_prg NE lv_prefix_cl ).
        RETURN.
      ENDIF.

      " Check Z/Y classes
      IF ( lv_prefix_cl IS INITIAL ) AND ( lv_class NP 'Z*' ) AND ( lv_class NP 'Y*' ).
        RETURN.
      ENDIF.

    ENDIF.

    " Check class existence in database
    SELECT COUNT( * )
      FROM seoclass
      WHERE clsname = lv_class.
    IF sy-subrc EQ 0.
      rv_exist = abap_true.
    ENDIF.

  ENDMETHOD.

  METHOD process_class_includes.

    " Inspiration taken from: http://www.sapnet.ru/viewtopic.php?p=7706

    DATA:
      lv_classkey     TYPE seoclskey,
      lv_class_src    TYPE string,
      lt_text         TYPE TABLE OF textpool,
      lt_types        TYPE seoo_types_r,
      lt_include      TYPE seop_methods_w_include,
      lt_source       TYPE seop_source,
      ls_typkey       TYPE seocmpkey,
      lt_code_edp     TYPE seop_source,
      lt_code_str     TYPE tt_code_str,
      lv_include_name TYPE programm.

    FIELD-SYMBOLS:
      <fs_type>    TYPE seoo_type_r,
      <fs_include> TYPE LINE OF seop_methods_w_include.

    lv_classkey  = iv_class.
    TRANSLATE lv_classkey TO UPPER CASE.

    " Get class description
    CALL FUNCTION 'SEO_CLASS_TYPEINFO_GET'
      EXPORTING
        clskey            = lv_classkey
        version           = seoc_version_active
        with_descriptions = 'X'
      IMPORTING
        types             = lt_types
      EXCEPTIONS
        not_existing      = 1
        is_interface      = 2
        model_only        = 3
        OTHERS            = 4.

    IF sy-subrc NE 0.
      MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
      WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
    ENDIF.

    " Gathering together internal type source
    LOOP AT lt_types ASSIGNING <fs_type>.

      ls_typkey-clsname = <fs_type>-clsname.
      ls_typkey-cmpname = <fs_type>-cmpname.

      CLEAR lt_code_edp[].
      CALL FUNCTION 'SEO_CLASS_GET_TYPE_SOURCE'
        EXPORTING
          typkey                       = ls_typkey
        IMPORTING
          source                       = lt_code_edp
        EXCEPTIONS
          _internal_class_not_existing = 1
          not_existing                 = 2
          not_edited                   = 3
          OTHERS                       = 4.

      CHECK sy-subrc = 0 AND lt_code_edp[] IS NOT INITIAL.

      convert_code_edpline(
        EXPORTING it_code = lt_code_edp[]
        IMPORTING et_code = lt_code_str
      ).

      CLEAR lv_class_src.
      CONCATENATE <fs_type>-clsname <fs_type>-cmpname INTO lv_class_src.
      CONDENSE lv_class_src.

      process_lines(
        iv_regex    = iv_regex
        iv_src_type = 'CLASS_DEF:'
        iv_src_name = lv_class_src
        it_src_code = lt_code_str
        iv_colect_subclass = abap_false
      ).
    ENDLOOP.
    FREE lt_code_str.
    FREE lt_code_edp[].

    " Extract local definitions (classes, macros)
    CALL FUNCTION 'SEO_CLASS_GET_INCLUDE_BY_NAME'
      EXPORTING
        clskey   = lv_classkey
        limu     = seok_limu_locals
      IMPORTING
        progname = lv_include_name.

    get_process_class_source(
      iv_regex   = iv_regex
      iv_class   = lv_classkey
      iv_inctype = lv_include_name
    ).

    get_process_class_source(
      iv_regex   = iv_regex
      iv_class   = lv_classkey
      iv_inctype = seop_ext_class_locals_def
    ).

    get_process_class_source(
      iv_regex   = iv_regex
      iv_class   = lv_classkey
      iv_inctype = seop_ext_class_locals_imp
    ).

    get_process_class_source(
      iv_regex   = iv_regex
      iv_class   = lv_classkey
      iv_inctype = seop_ext_class_macros
    ).

    " Process texts
    CLEAR lv_include_name.
    CALL FUNCTION 'SEO_CLASS_GET_INCLUDE_BY_NAME'
      EXPORTING
        clskey   = lv_classkey
      IMPORTING
        progname = lv_include_name.

    DATA lv_lang TYPE spras.
    SELECT spras FROM t002 INTO lv_lang.
      REFRESH lt_text.
      READ TEXTPOOL lv_include_name INTO lt_text LANGUAGE lv_lang.

      CHECK sy-subrc = 0.

      convert_code_textpool(
        EXPORTING it_code = lt_text
        IMPORTING et_code = lt_code_str
      ).

      process_lines(
        iv_regex    = iv_regex
        iv_src_type = 'CLASS_TEXT:'
        iv_src_name = lv_classkey
        it_src_code = lt_code_str
        iv_colect_subclass = abap_false
      ).
    ENDSELECT.

    " Load all method includes
    CALL FUNCTION 'SEO_CLASS_GET_METHOD_INCLUDES'
      EXPORTING
        clskey                       = lv_classkey
      IMPORTING
        includes                     = lt_include
      EXCEPTIONS
        _internal_class_not_existing = 1
        OTHERS                       = 2.

    IF sy-subrc NE 0.
      MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
      WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
    ENDIF.

    LOOP AT lt_include ASSIGNING <fs_include>.

      CLEAR lt_source[].
      CALL FUNCTION 'SEO_METHOD_GET_SOURCE'
        EXPORTING
          mtdkey                        = <fs_include>-cpdkey
          state                         = 'A'
        IMPORTING
          source                        = lt_source
        EXCEPTIONS
          _internal_method_not_existing = 1
          _internal_class_not_existing  = 2
          version_not_existing          = 3
          inactive_new                  = 4
          inactive_deleted              = 5
          OTHERS                        = 6.

      CHECK sy-subrc = 0.

      convert_code_edpline(
        EXPORTING it_code = lt_source[]
        IMPORTING et_code = lt_code_str
      ).

      process_lines(
        iv_regex    = iv_regex
        iv_src_type = 'CLASS_INC2:'
        iv_src_name = <fs_include>-cpdkey
        it_src_code = lt_code_str
        iv_colect_subclass = abap_false
      ).
    ENDLOOP.

    IF sy-subrc NE 0.
      MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
      WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
    ENDIF.

  ENDMETHOD.

  METHOD get_process_class_source.

    DATA:
      lt_code_edp  TYPE seop_source,
      lt_code_str  TYPE tt_code_str,
      lv_class_src TYPE string.

    CALL FUNCTION 'SEO_CLASS_GET_INCLUDE_SOURCE'
      EXPORTING
        clskey                       = iv_class
        inctype                      = iv_inctype
      IMPORTING
        source                       = lt_code_edp
      EXCEPTIONS
        _internal_class_not_existing = 0
        not_existing                 = 0
        OTHERS                       = 0.

    convert_code_edpline(
      EXPORTING it_code = lt_code_edp
      IMPORTING et_code = lt_code_str
    ).

    CONCATENATE iv_class iv_inctype INTO lv_class_src.
    CONDENSE lv_class_src.

    process_lines(
      iv_regex    = iv_regex
      iv_src_type = 'CLASS_INC:'
      iv_src_name = lv_class_src
      it_src_code = lt_code_str
      iv_colect_subclass = abap_false
    ).

    FREE lt_code_edp.
    FREE lt_code_str.

  ENDMETHOD.

  METHOD get_program_includes.

    " Get include list of program
    CALL FUNCTION 'GET_INCLUDETAB'
      EXPORTING
        progname = iv_prog
      TABLES
        incltab  = et_include.

    " Add main program itself
    APPEND iv_prog TO et_include.

  ENDMETHOD.

  METHOD process_program.

    DATA lt_include  TYPE STANDARD TABLE OF ts_include.

    CLEAR t_clsname.

    get_program_includes(
      EXPORTING iv_prog = iv_prog
      IMPORTING et_include = lt_include
    ).

    process_program_includes(
      iv_prog    = iv_prog
      iv_regex   = iv_regex
      it_include = lt_include
    ).

    " Process program repository classes
    FIELD-SYMBOLS <f_class> LIKE LINE OF t_clsname.
    LOOP AT t_clsname ASSIGNING <f_class>.

      IF check_class_exist(
          iv_class = <f_class>
          iv_own_cl = iv_own_cl
          iv_prog = iv_prog
        ) EQ abap_true.
        process_class_includes(
          iv_class = <f_class>
          iv_regex = iv_regex
        ).
      ENDIF.
    ENDLOOP.

    process_final_alv( ).

  ENDMETHOD.

  METHOD process_class.

    DATA lv_class TYPE string.
    lv_class = iv_class.

    process_class_includes(
      iv_class = lv_class
      iv_regex = iv_regex
    ).

    process_final_alv( ).

  ENDMETHOD.

  METHOD process_program_includes.

    DATA:
      lv_srctype TYPE string,
      lt_code    TYPE tt_code_str.

    FIELD-SYMBOLS:
      <f_include> LIKE LINE OF it_include.

    " Get includes content
    LOOP AT it_include ASSIGNING <f_include>.

      " Set source type
      CLEAR lv_srctype.
      IF <f_include>-prgname EQ iv_prog.
        lv_srctype = 'MAIN_PROG:'.
      ELSE.
        lv_srctype = 'INCLUDE:'.
      ENDIF.

      " Load code lines
      READ REPORT <f_include>-prgname INTO lt_code.

      process_lines(
        iv_regex           = iv_regex
        iv_src_type        = lv_srctype
        iv_src_name        = <f_include>-prgname
        it_src_code        = lt_code
        iv_colect_subclass = abap_true
      ).
      FREE lt_code[].
    ENDLOOP.

  ENDMETHOD.

  METHOD process_lines.

    DATA:
      lv_line_num     TYPE i.

    FIELD-SYMBOLS:
      <f_code_line>   LIKE LINE OF it_src_code.

    LOOP AT it_src_code ASSIGNING <f_code_line>.

      " Line counters
      lv_line_num = lv_line_num + 1.
      v_total_line_num = v_total_line_num + 1.

      " Does string match the pattern for class declaration or static usage?
      IF iv_colect_subclass EQ abap_true.
        regex_classname( iv_code_line = <f_code_line> ).
      ENDIF.

      " Does string match the regex pattern?
      regex_target_string(
        iv_regex     = iv_regex
        iv_src_type  = iv_src_type
        iv_src_name  = iv_src_name
        iv_line_num  = lv_line_num
        iv_code_line = <f_code_line>
      ).

    ENDLOOP. " lines

  ENDMETHOD.

  METHOD process_final_alv.

    IF v_found_flag NE abap_true.
      WRITE 'Pattern WAS NOT FOUND within the source code.'.
    ELSE.

      DATA:
        lo_salv TYPE REF TO cl_salv_table,
        lo_cols TYPE REF TO cl_salv_columns,
        lo_col  TYPE REF TO cl_salv_column.

      TRY.
          CALL METHOD cl_salv_table=>factory
            EXPORTING
              list_display = if_salv_c_bool_sap=>true
            IMPORTING
              r_salv_table = lo_salv
            CHANGING
              t_table      = t_target_code_line.
        CATCH cx_root INTO o_ref.
          WRITE:/ 'ALV error occured : ', o_ref->get_text( ).
          RETURN.
      ENDTRY.

      lo_cols = lo_salv->get_columns( ).
      lo_cols->set_optimize( if_salv_c_bool_sap=>true ).

      TRY.
          lo_col = lo_cols->get_column( 'SRC_TYPE' ).
          lo_col->set_medium_text( 'Source' ).

          lo_col = lo_cols->get_column( 'SRC_NAME' ).
          lo_col->set_medium_text( 'Name' ).

          lo_col = lo_cols->get_column( 'LINE_NUM' ).
          lo_col->set_medium_text( 'Line' ).

          lo_col = lo_cols->get_column( 'SRC_CODE' ).
          lo_col->set_medium_text( 'Coding' ).

        CATCH cx_root INTO o_ref.
          WRITE:/ 'ALV columns error occured : ', o_ref->get_text( ).
          RETURN.
      ENDTRY.

      lo_salv->display( ).

    ENDIF.

    WRITE:/,/ 'Total number of explored lines: ',  v_total_line_num.

  ENDMETHOD.

  METHOD regex_classname.

    DATA:
      lv_clsname         TYPE string.

    FIELD-SYMBOLS:
      <f_regex_class> LIKE LINE OF t_regex_class.

    LOOP AT t_regex_class ASSIGNING <f_regex_class>.

      CLEAR lv_clsname.

      FIND REGEX <f_regex_class>
      IN iv_code_line IGNORING CASE
      SUBMATCHES lv_clsname.

      CONDENSE lv_clsname.

      IF lv_clsname IS NOT INITIAL.
        APPEND lv_clsname TO t_clsname.
      ENDIF.
    ENDLOOP.

  ENDMETHOD.

  METHOD regex_target_string.

    DATA:
      lo_matcher     TYPE REF TO cl_abap_matcher,
      lv_match       TYPE c LENGTH 1,
      lv_regex       TYPE string,
      ls_target_line TYPE ts_code_line.

    " Input searched regex
    MOVE iv_regex TO lv_regex.

    " Does string match the regex pattern?
    lv_match = abap_false.
    TRY.
        FREE lo_matcher.
        lo_matcher = cl_abap_matcher=>create(
          pattern     = lv_regex
          ignore_case = abap_true
          text        = iv_code_line
        ).
        lv_match = lo_matcher->match( ).
      CATCH cx_root INTO o_ref.
        WRITE:/ 'Input regex error occured : ', o_ref->get_text( ).
        RETURN.
    ENDTRY.
    IF lv_match EQ abap_true.
      CLEAR ls_target_line.

      ls_target_line-src_type = iv_src_type.
      ls_target_line-src_name = iv_src_name.
      ls_target_line-line_num = iv_line_num.
      ls_target_line-src_code = iv_code_line.

      CONDENSE ls_target_line-src_type.
      CONDENSE ls_target_line-src_name.

      APPEND ls_target_line TO t_target_code_line.

      v_found_flag = abap_true. " General flag
    ENDIF.

  ENDMETHOD.

ENDCLASS.
